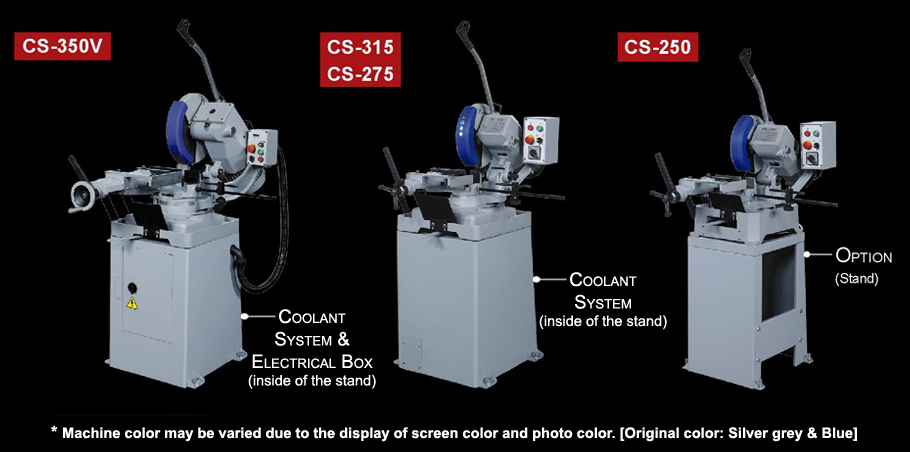

CIRCULAR COLD SAW 圓鋸機



Click the BLUE words below or machine photos for more details  詳細內容請點選下列藍字或機械圖

90 Degree Cutting Test   45 Degree Cutting Test




MODEL

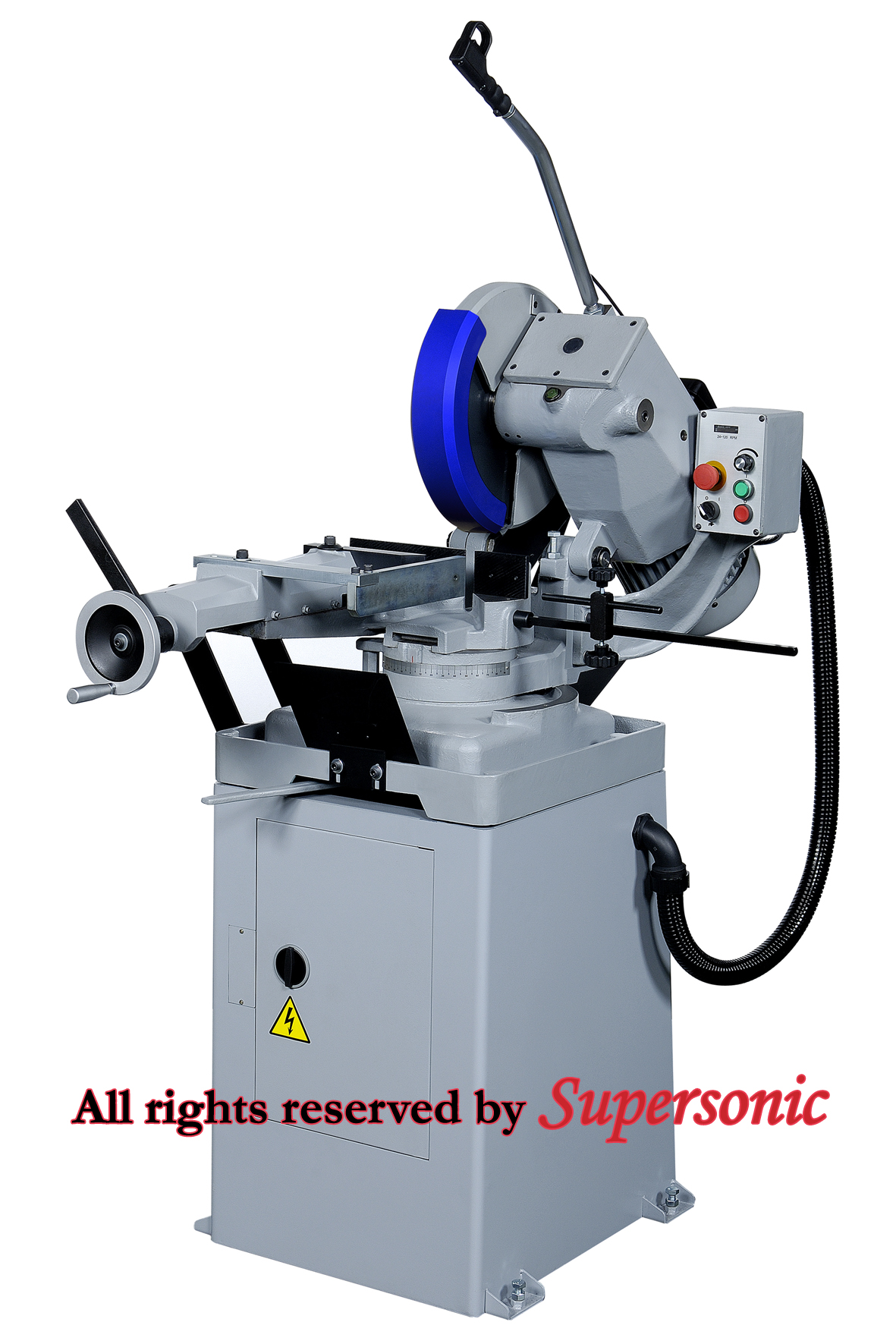

CS-350V

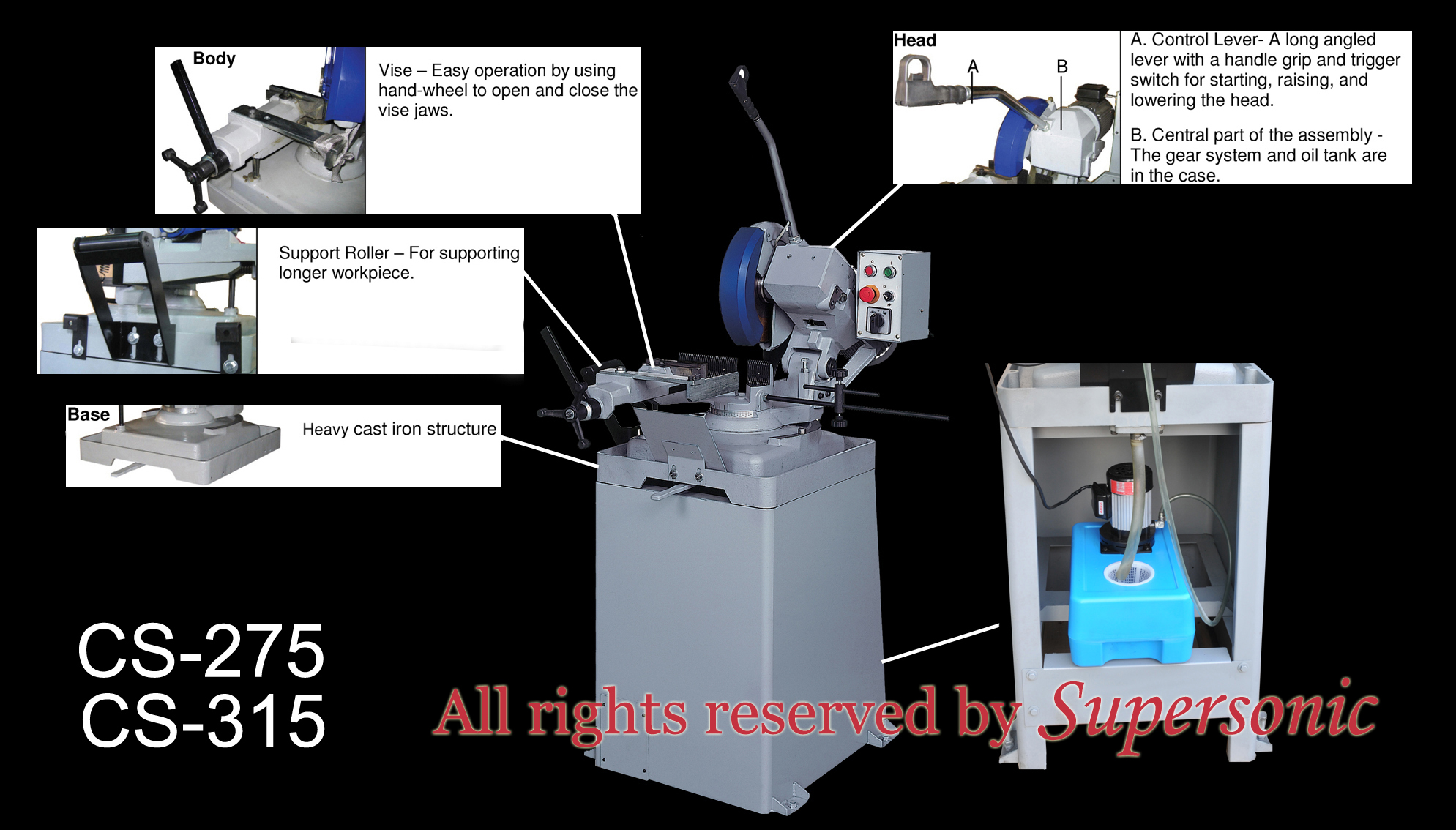

CS-315

CS-275

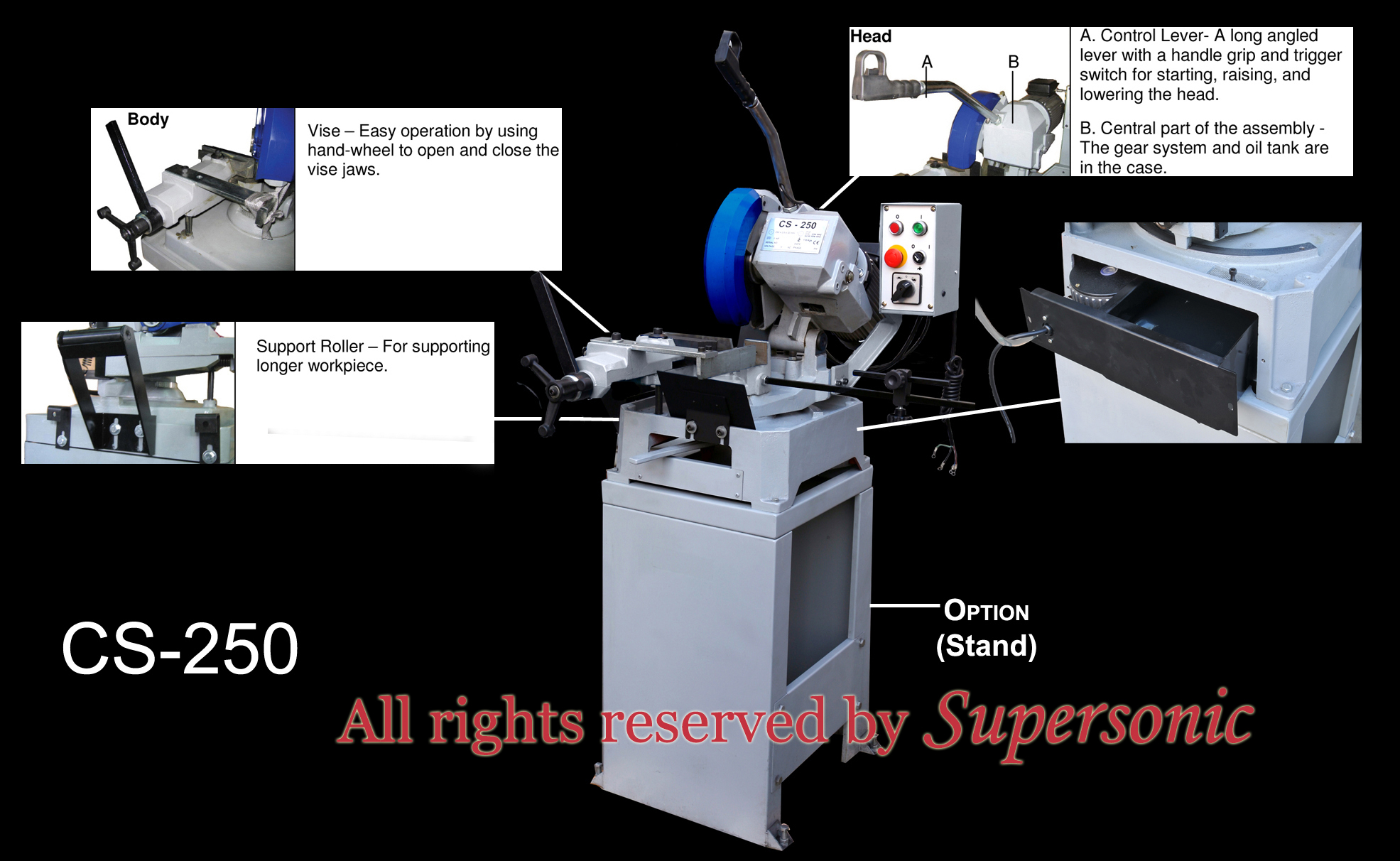

CS-250

85mm

60mm

40mm

30mm

120mm 100mm 85mm 75mm
105 x 105mm 82 x 82mm 75 x 75mm 65 x 65mm
160 x 90mm 110 x 70mm 90 x 50mm

75mm

50mm

40mm

30mm

100mm 90mm 65mm
85 x 85mm 75 x 75mm 55 x 55mm
85 x 70mm 85 x 70mm 60 x 50mm

Main motor  馬達

3HP / 4pole

2HP

 2P/4P or

4P/8P (OP)

1-1/2HP

2P/4P

1HP

2P/4P

Spindle speed  主軸轉速

24~120rpm

 50HZ (2P/4P): 44/88rpm

 50HZ (4P/8P): 22/44rpm

 60HZ (2P/4P): 52/104rpm

 60HZ (4P/8P): 26/52rpm

50HZ: 45/90rpm

60HZ: 54/108rpm

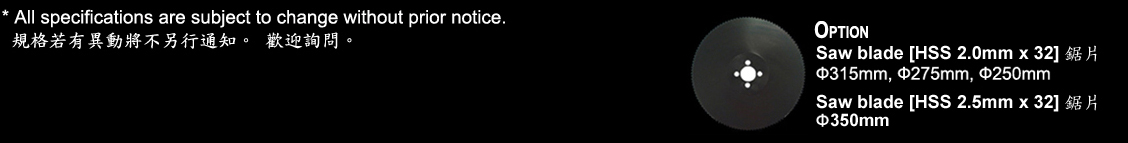

Saw blade  鋸片規格 (Option)

HSS

2.5 x 32 x Φ350mm

HSS

2.0 x 32 x Φ315mm

HSS

2.0 x 32 x Φ275mm

HSS

2.0 x 32 x Φ250mm

Max. vise opening  最大夾鉗開度

170mm

120mm

100mm

Coolant pump  冷卻泵浦

1/8HP

Coolant tank  冷卻水箱

5L

2L

Machine weight  機械重量

250kgs

(w/stand 含腳架)

175kgs

(w/stand 含腳架)

160kgs

(w/stand 含腳架)

110kgs (w/o stand)

21kgs (stand 腳架)

Machine dimension (L x W x H)

機械尺寸 (w/stand 含腳架) mm

1200 x 990 x 1720

1010x 960 x 1770

970 x 950 x 1645

880 x 920 x 1600

Stand dimension (L x W x H)

腳架尺寸 mm

600 x 580 x 720

505 x 500 x 720
