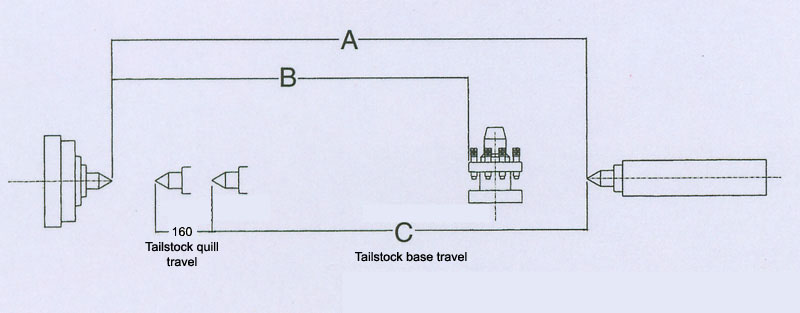

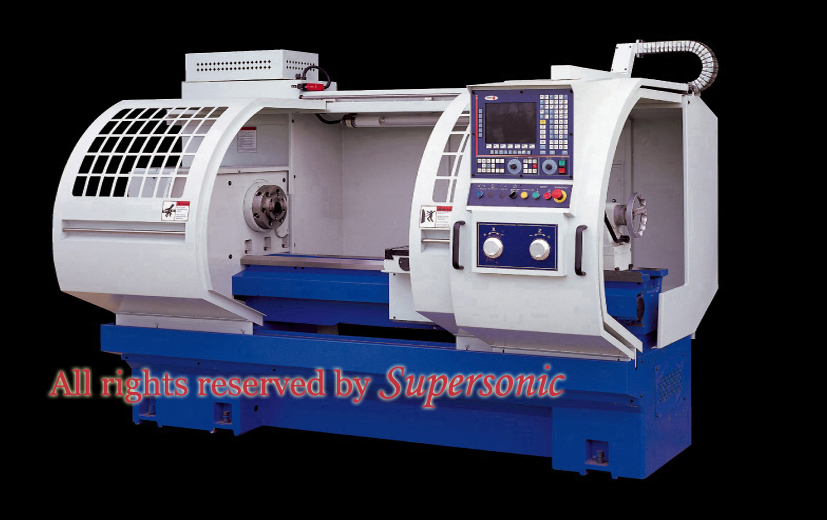

Model / Item |
A |
B |
C |
2040 |
1000 |
890 |
890 |
2060 |
1500 |
1390 |
1390 |
2080 |
2000 |
1890 |
1890 |
|
|
|
|
|
|
| SPECIFICATIONS |
|
|
|
Swing over bed
|
510mm |
|
Swing over cross slide |
290mm |
|
Swing over gap |
710mm |
|
|
Center height
|
255mm |
|
Centers distance
|
1000, 1500, 2000mm |
|

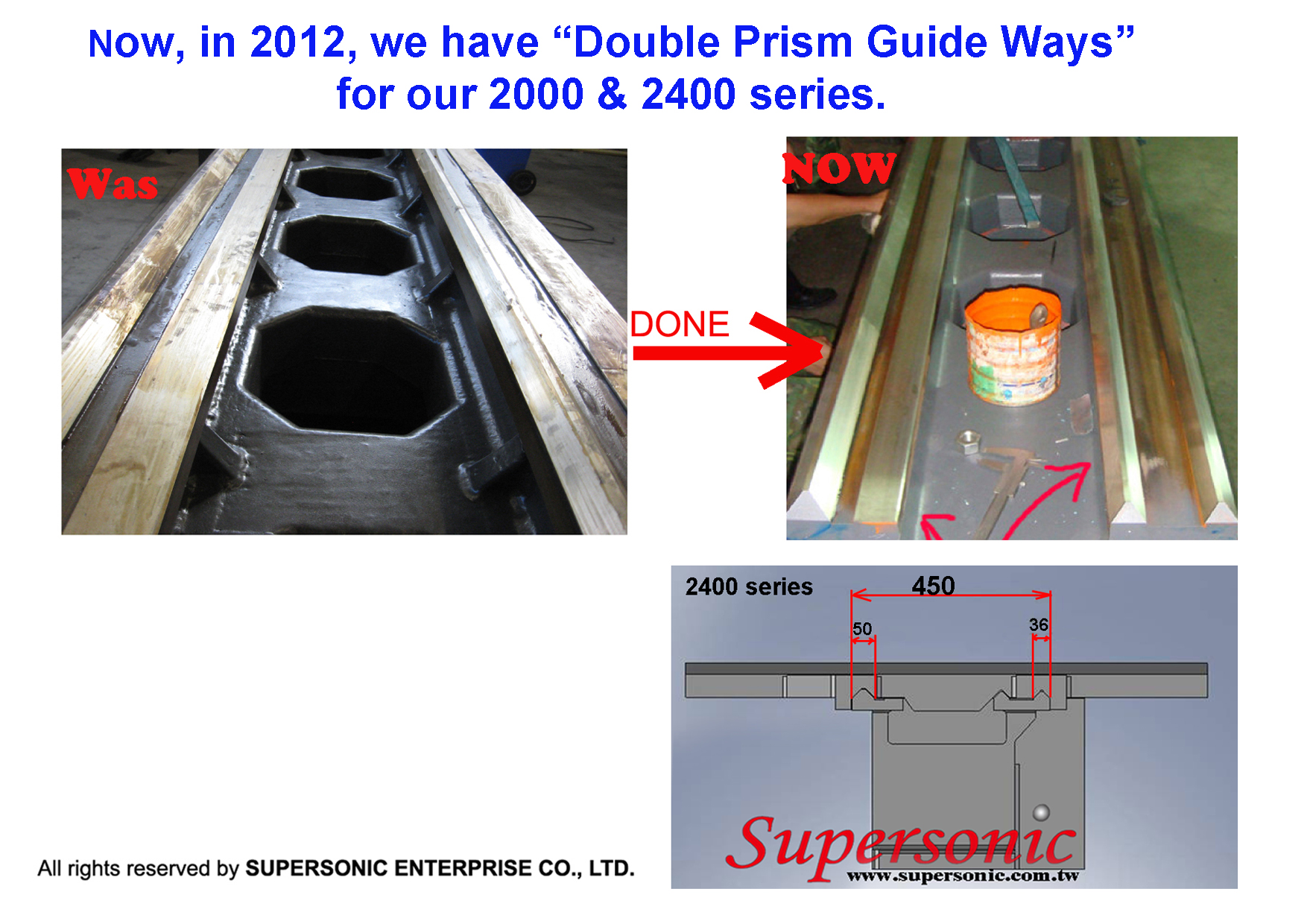

Bed width |
350mm |
|
Cross slide width |
220mm |
|
|
Spindle speed (3
ranges) |
30-2000rpm |
|
Spindle
taper |
MT#7 |
|
Spindle bore |
85mm |
|
Spindle nose |
D1-8 |
|
|
Z-axis ball screw |
ø40mm x P10
x C5 |
|
X-axis ball screw |
ø25mm x P5
x C3 |
|
Rapid traverse X/Z |
6000/8000 mm/min |
|
|
|
Z-axis travel |
890, 1390,
1890mm |
|
X-axis travel |
380mm |
|
Quill taper |
MT#5 |
|
|
Quill diameter |
75mm |
|
Quill travel |
160mm |
|
Cutting tool |
25mm x 25mm |
|
Positioning accuracy |
±0.01mm/300mm |
|
|
Repeatability accuracy |
±0.005mm |
|
Spindle run-out |
±0.01mm |
|
Spindle motor (A.C) |
15HP |
|
X/Z axis servo motor |
1kw/1kw |
|
|
Coolant pump |
1/8 HP (90W) |
|
Net weight |
3000, 3300, 3600kgs |
|
Measurement (2040) |
2.7M x
2.2M x 2.1M |
|
|
|
* All specifications
are subject to change without prior notice. |
|
* The above specification is
measured without any optional accessories, such as turret and
chuck...etc. |
|
* OEM machine (frame & sheet
metal parts) is available upon request. |
| |
| |
|
|
Standard Accessories:
|
|
1.

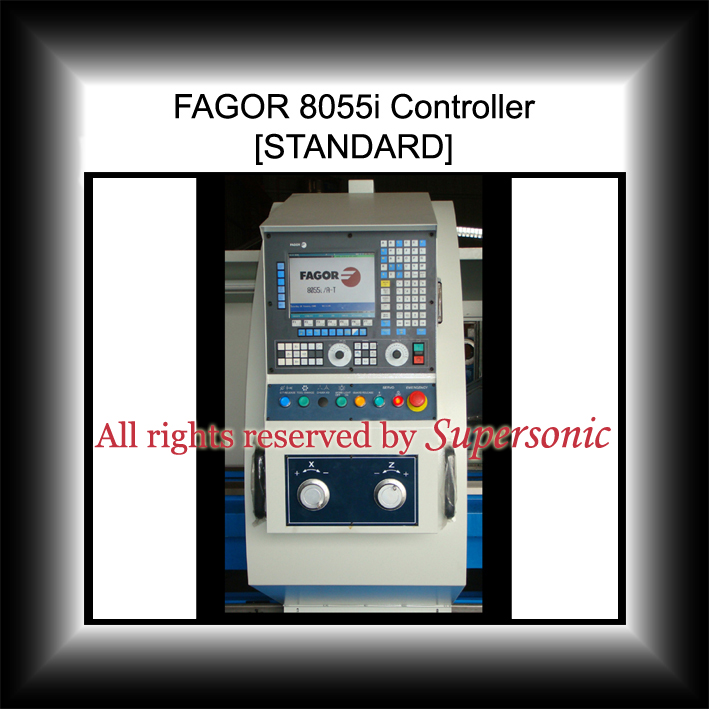

Fagor 8055i controller |
7. Coolant equipment |
|
2. Fagor
X-axis servo motor:
FKM42.30A.E3.000 (6.3Nm/3000rpm) |
8. MT#5 dead center |
|
3. Fagor Z-axis servo motor:
FKM42.30A.E3.000 (6.3Nm/3000rpm) |
9. Work lamp |
|
4. YASKAWA inverter for
spindle motor |
10. Leveling bolts & nuts
|
|
5. 250mm (10") bearing
type steady rest |
11. Tool box & service tools |
|
6. Automatic lubrication system |
12. Manual tailstock |
|
|
|
|
|

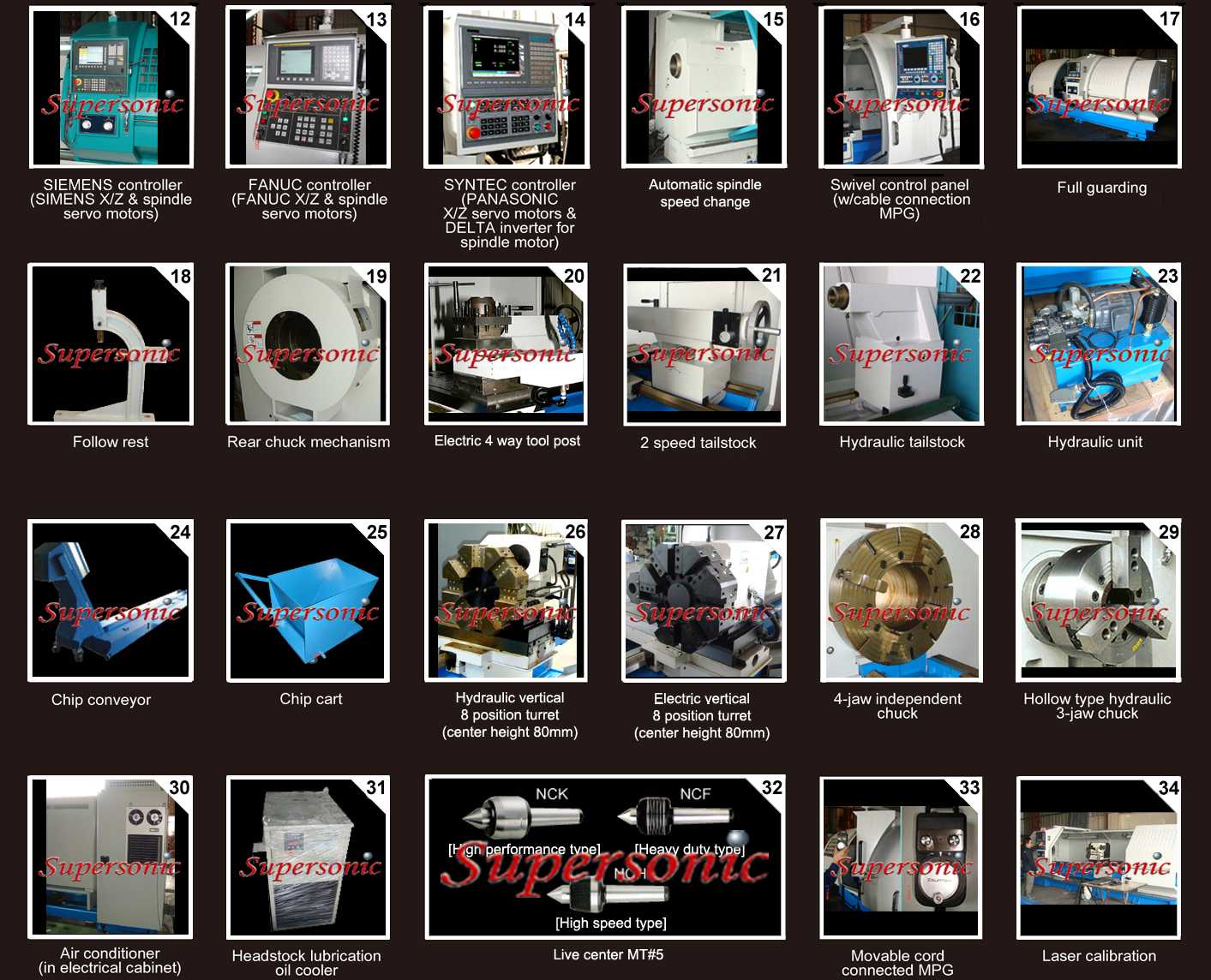

Optional Accessories:
|
|
1. "CE" conformity |
4. Hydraulic brake for
spindle |
|
2. FAGOR servo motor for
spindle:
FM7-A075-S3C1-E01 (7.5~11kw) |
5. PLC lubrication unit |
|
3. Manual 3-jaw scroll
chuck |

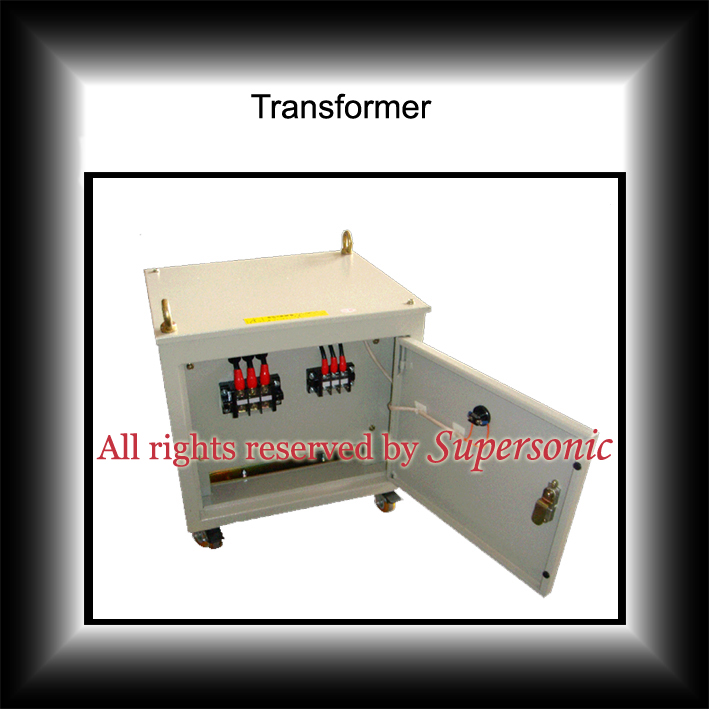

6.
Transformer |
|
* Order with Hyd. or Electric turret (#2021 or #2022), Z-axis
servo motor will be upgraded to FKM44.30A.E3.100
(11.6Nm/3000rpm). |
 |
|
|
