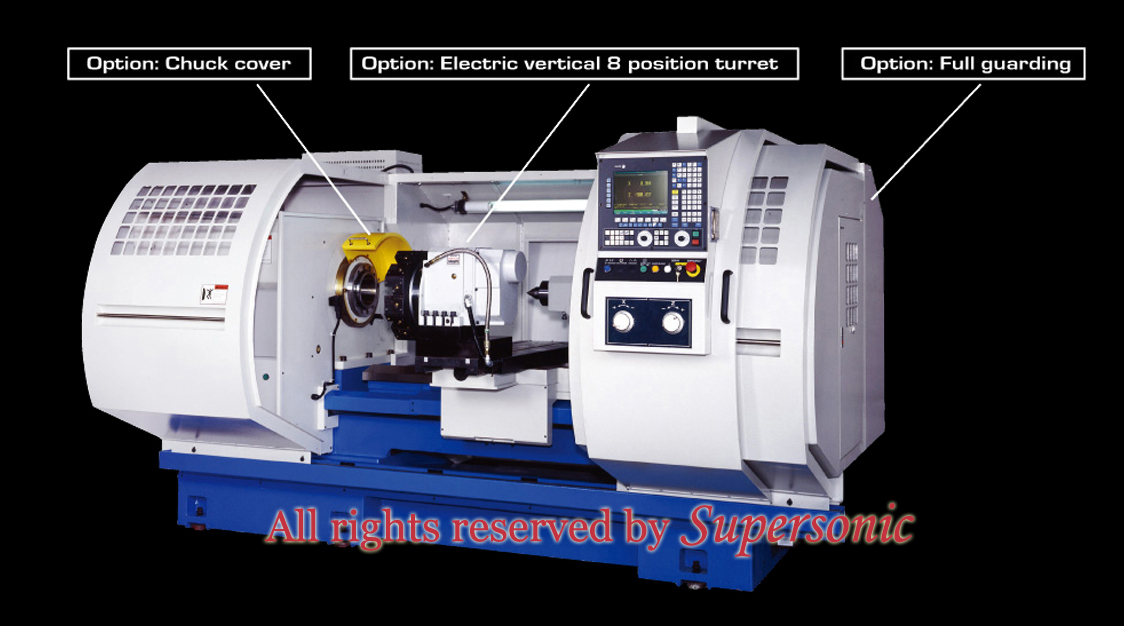

SUPERSONIC – 2400 CNC Turning Lathe [610mm, 710mm, 760mm swing over bed ; 105mm,  155mm spindle bore]

2400 SERIES CNC HEAVY DUTY LATHE

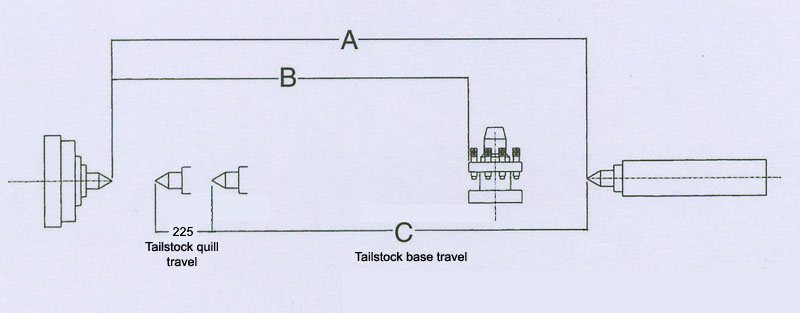

Model / Item
A
B
C
2440
930
970
930
2460
1430
1470
1430
2480
1930
1970
1930
24120
2930
2970
2930

24160

3930 3970 3930

Special Casting Design




SPECIFICATIONS
Swing over bed (mm)
610, 710(option), 760(option)
Swing over cross slide (mm)
390, 490(option), 540(option)
Swing over gap (mm)
890, 990, 1040

Center height (mm)
305, 355(option), 380(option)
Centers distance (mm)
930, 1430, 1930, 2930, 3930
Bed width
450mm
Cross slide width
250mm

Spindle speed (3 ranges)
20-1500rpm
Spindle taper

MT#7

Spindle bore (mm)
105, 155(option), 180(option), 230(option)
Spindle nose
D1-11 or A2-11, A2-15(option)

Z-axis ball screw
ø50mm x P10 x C5
X-axis ball screw
ø32mm x P5 x C3
Rapid traverse X/Z
6000/8000 mm/min

Z-axis travel (mm)
970, 1470, 1970, 2970, 3970
X-axis travel
405mm
Quill taper
MT#5

Quill diameter
105mm
Quill travel
250mm
Cutting tool
25mm x 25mm
Positioning accuracy
±0.01mm/300mm

Repeatability accuracy
±0.005mm
Spindle run-out
±0.01mm
Spindle motor (A.C)
20HP, 30HP(option)
X/Z axis servo motor
1kw/2kw

Coolant pump
1/8 HP(90W)
Net weight (kgs)
4000, 4400, 5000, 5800, 6600
Measurement (2440)

3.0M x 2.2M x 2.2M


* All specifications are subject to change without prior notice.

* The above specification is measured without any optional accessories, such as turret and chuck...etc.

* OEM machine (frame & sheet metal parts) is available upon request.



Standard Accessories:
1. Fagor 8055i controller 7. Coolant equipment
2. Fagor X-axis servo motor: FKM42.30A.E3.000 (6.3Nm/3000rpm) 8. MT#6 dead center
3. Fagor Z-axis servo motor: FKM64.30A.E3.000 (16.5Nm/3000rpm) 9. Work lamp
4. YASKAWA inverter for spindle motor 10. Leveling bolts & nuts
5. 300mm (12") bearing type steady rest 11. Tool box & service tools
6. Automatic lubrication system 12. Manual tailstock

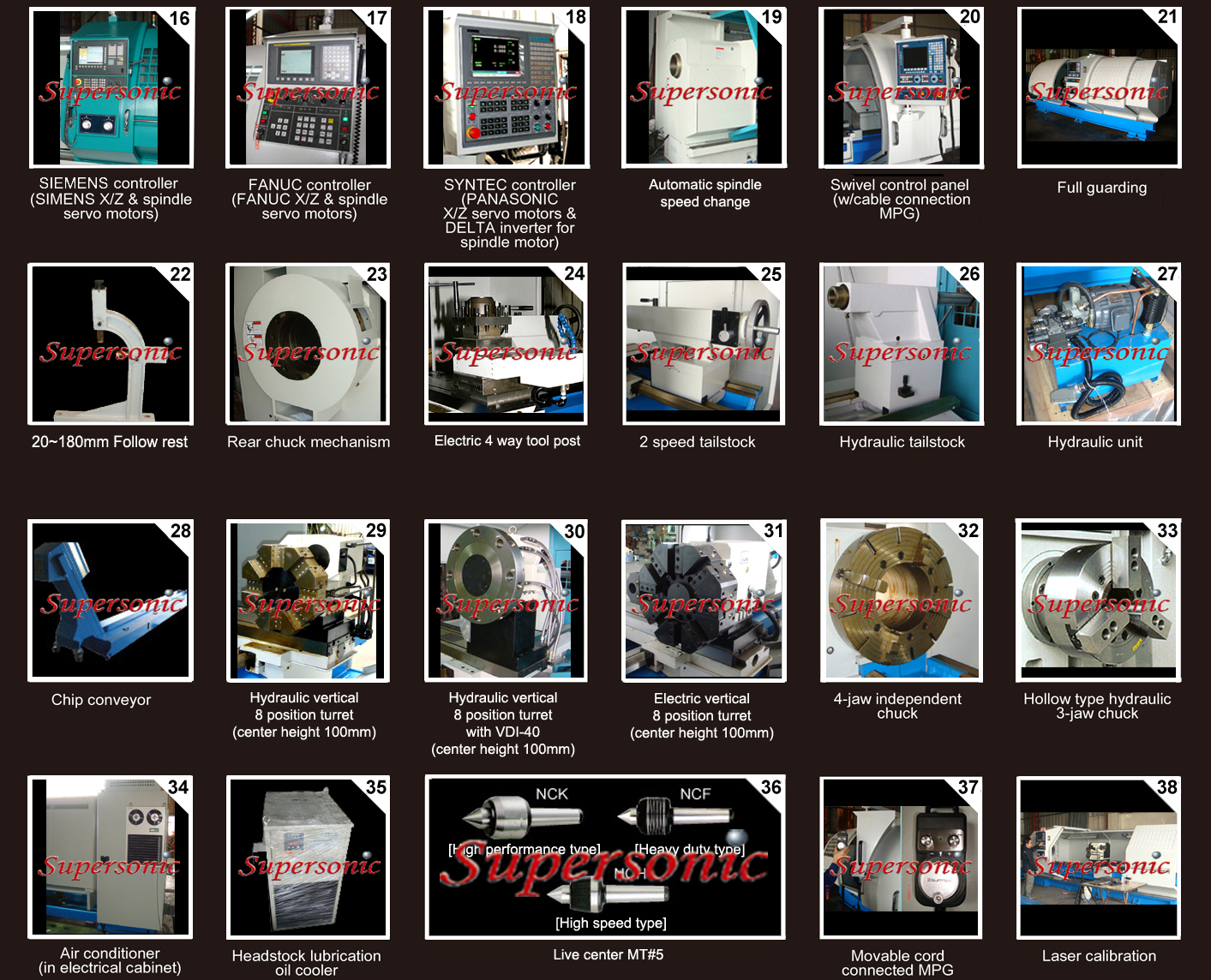

Optional Accessories:
1. "CE" conformity 8. 30HP main motor
2. FAGOR servo motor for spindle: FM7-A150-S3C1-E01 (15~22kw) 9. 400mm (16") bearing type steady rest
3. 155mm spindle bore (A2-11; 20~1000rpm, 760mm swing over bed) 10. Manual 3-jaw scroll chuck
4. 180mm spindle bore (A2-15; 20~1000rpm, 760mm swing over bed) 11. Hydraulic brake for spindle
5. 230mm spindle bore (A2-15; 20~800rpm, 760mm swing over bed) 12. PLC lubrication unit
6. 710mm swing over bed 13. Transformer
7. 760mm swing over bed 14. Chip cart

* Order with Hyd. or Electric turret  (#2426 or #2428), Z-axis servo motor will be upgraded to FKM66.30A.E3.000 (23.5Nm/3000rpm).



* Photos are for reference, please check with our dealers for final confirmation.
