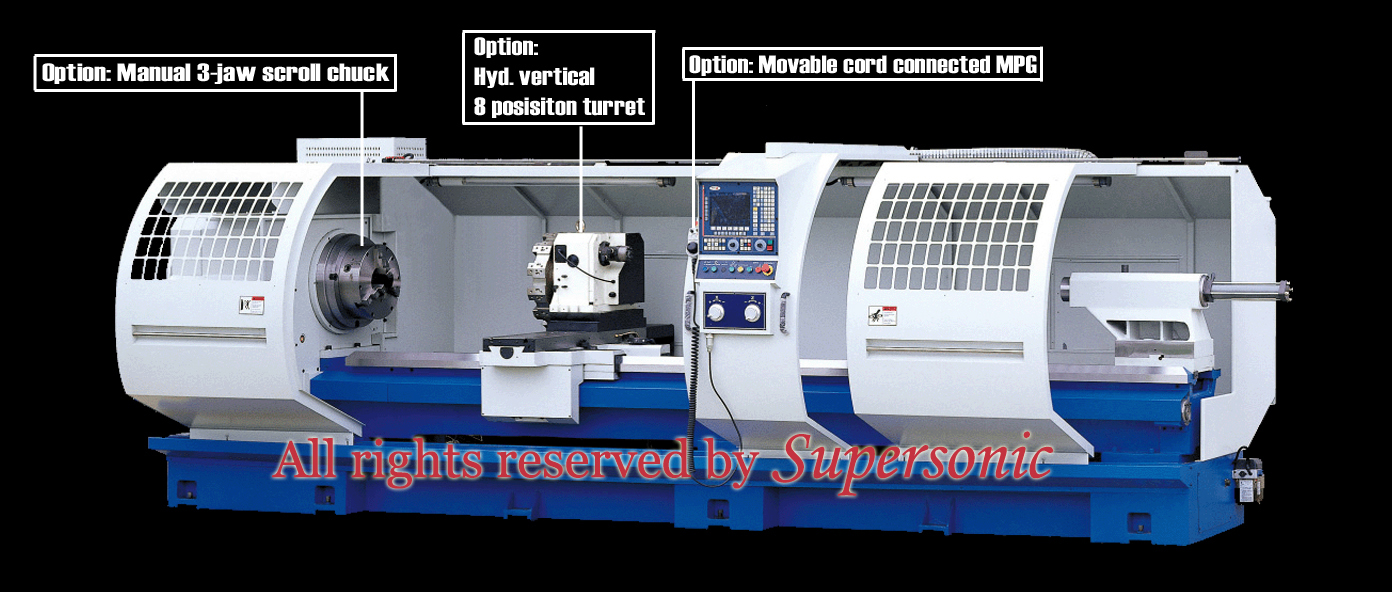

SUPERSONIC – 3200 CNC Turning Lathe [800mm, 1000mm, 1200 swing over bed ; 155mm, 250mm, 305mm, 380mm spindle bore]

3200 SERIES CNC OIL COUNTRY LATHE

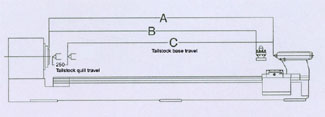

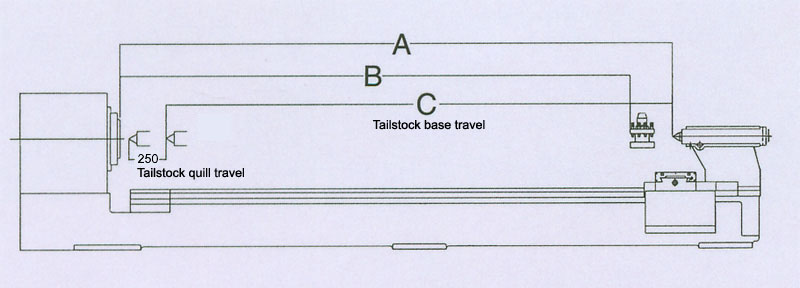

Model / Item
A
B
C
3280
2200
1980 2030
32120
3200
2980 3030
32160
4000
3780 3830
32200 5000 4780 4830

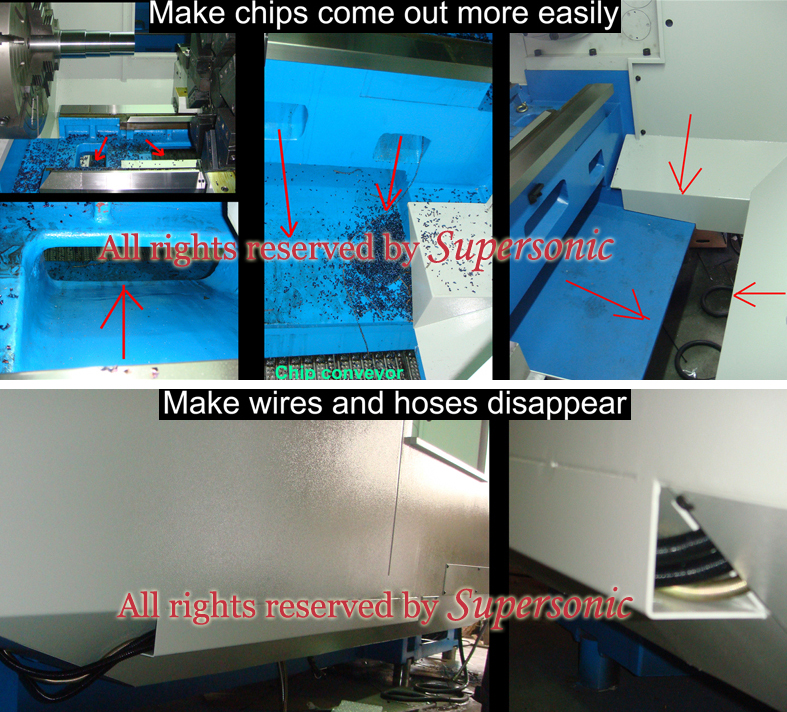

Special Casting Design


SPECIFICATIONS
Swing over bed (mm)
800, 1000(option), 1200(option)
Swing over cross slide (mm)
510, 710(option), 910(option)
Swing over gap (mm)
1080, 1280, 1480

Center height (mm)
400, 500(option), 600(option)
Centers distance (mm)
2200, 3200, 4000, 5000
Bed width
560mm
Cross slide width
300mm

Spindle speed (4 ranges)
4-600rpm
Spindle bore (mm)
250, 155(option), 300(option), 380(option)
Spindle nose
A2-15, A2-11(option), A2-20(option)


Z-axis ball screw
ø63mm x P10 x C5
X-axis ball screw
ø40mm x P5 x C3
Rapid traverse X/Z
6000/8000 mm/min

Z-axis travel (mm)
1980, 2980, 3780, 4780
X-axis travel
550mm
Quill taper
MT#6

Quill diameter
125mm
Quill travel
275mm
Cutting tool
32mm x 32mm
Positioning accuracy
±0.01mm/300mm

Repeatability accuracy
±0.005mm
Spindle run-out
±0.01mm
Spindle motor (A.C)
30HP, 40HP(option)

X/Z axis servo motor
2kw/3kw
Coolant pump
1/4 HP(180W)
Net weight (kgs)
6800, 8000, 8800, 9800
Measurement (3280)

4.5M x 2.2M x 2.2M


* All specifications are subject to change without prior notice.

* The above specification is measured without any optional accessories, such as turret and chuck...etc.

* OEM machine (frame & sheet metal parts) is available upon request.



Standard Accessories:
1. Fagor 8055i controller 7. Coolant equipment
2. Fagor X-axis servo motor: FXM 54.30A.E1.000 (14.8Nm/3000rpm) 8. MT#6 dead center
3. Fagor Z-axis servo motor: FXM 74.30A.E1.000 (27.3Nm/3000rpm) 9. Work lamp
4. YASKAWA inverter for spindle motor 10. Leveling bolts & nuts
5. 380mm (15") bearing type steady rest 11. Tool box & service tools
6. Automatic lubrication system 12. Manual tailstock

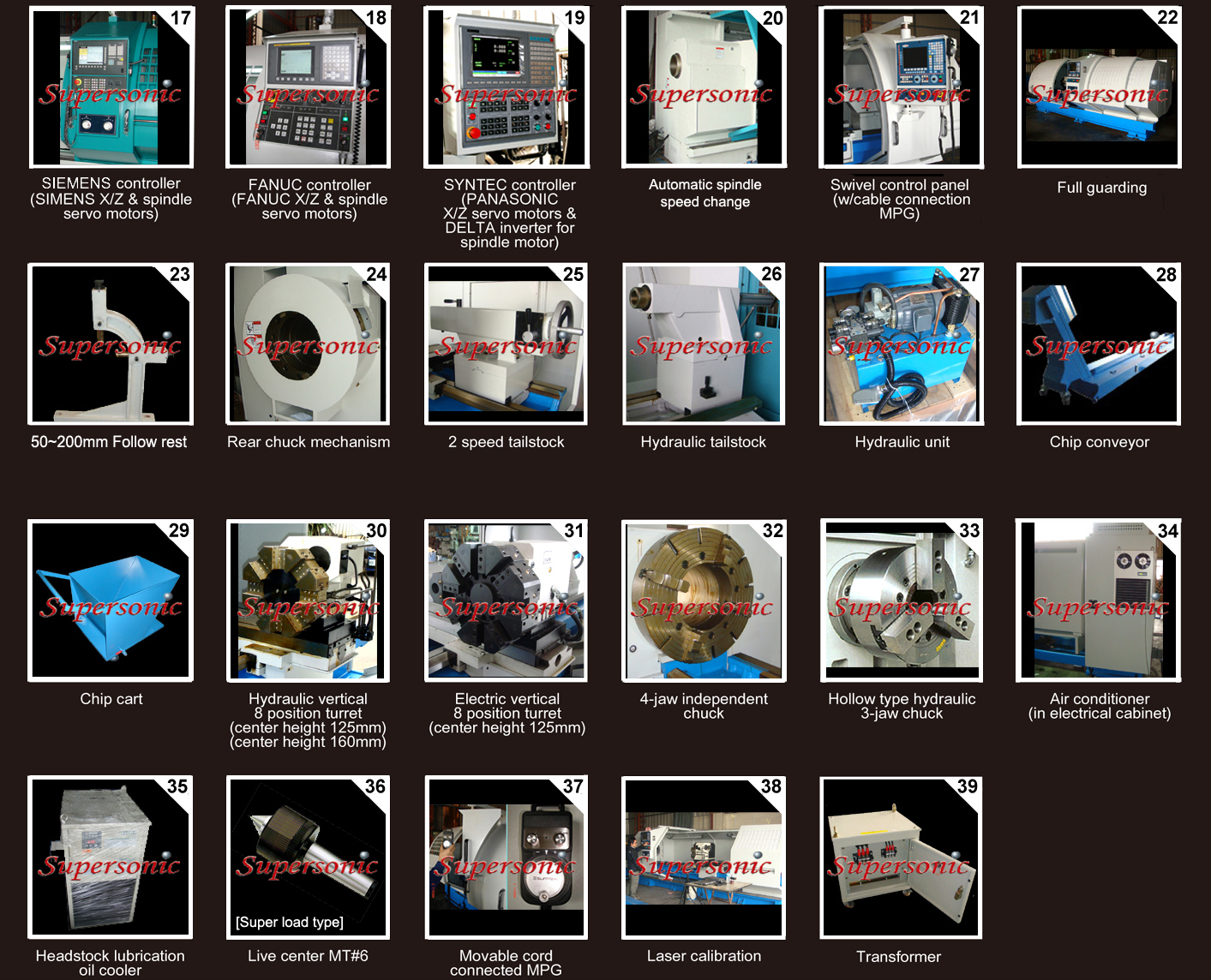

Optional Accessories:
1. "CE" conformity 8. 40HP spindle motor
2. FAGOR servo motor for spindle: FM7-A200-S3C1-E01  (22~33kw) 9. 650mm (26") bearing type steady rest
3. 155mm spindle bore (A2-11; 6~800rpm) 10. 800mm (32") bearing type steady rest
4. 300mm spindle bore (A2-20; 4~400rpm) 11. Manual 3-jaw scroll chuck
5. 380mm spindle bore (A2-20; 4~300rpm) 12. Hydraulic brake for spindle
6. 1000mm swing over bed 13. PLC lubrication unit
7. 1200mm swing over bed

* Photos are for reference, please check with our dealers for final confirmation.
