VARIABLE SPEED MILLING & DRILLING MACHINE

無段變速鑽床/鑽銑複合機



FEATURES

For All Models



For All Drilling Machine Models

TABLE



BASE

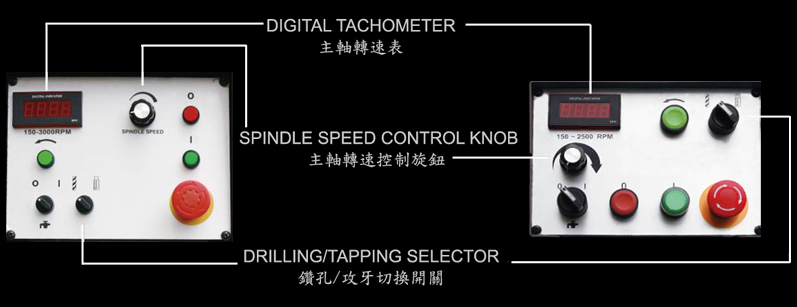

Control panel and spindle down feed with metric and imperial system scale are both at the front for easy operation.

前置式控制面板及公英兩用主 軸進刀深度設定刻度尺。



Table can be operated up and down by the front or rear side handle to solve the small working area problem.

工作台的升降可由 前方或右側把手調整,解決 操作空間不足的問題。



Base integrates with pump and coolant tank to enlarge your work space and keep the machine more stable.

底座: 大型底座內建冷 卻泵浦及水箱,可節省空 間同時增加機器的穩固度。

   ________________________________________________________________

GEAR DRIVING MODELS 齒輪傳動機型

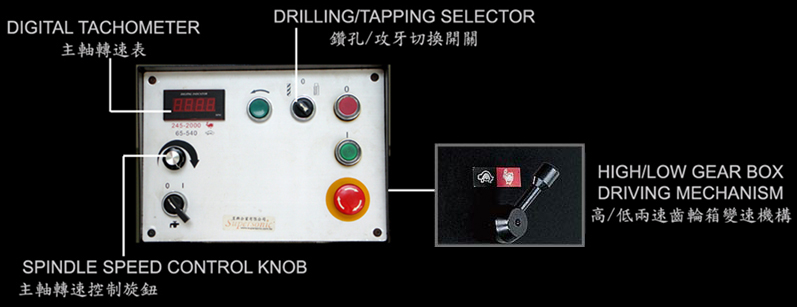

Full enclosed oil bath high/low gear box to assure enough torque when using low speed range.

全密閉浸油式兩段變速齒輪箱,確保主軸在低速運 轉時,仍有足夠的扭力。

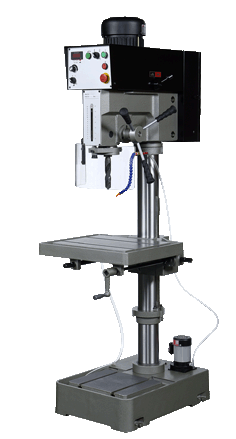

DP-920G

Inverter Variable Speed Drilling Machine - Gear Driving

變頻無段變速鑽床-齒輪傳動

[MT#3 spindle 主軸/ Tapping system 攻牙系統/ Digital tachometer 主軸轉速表]

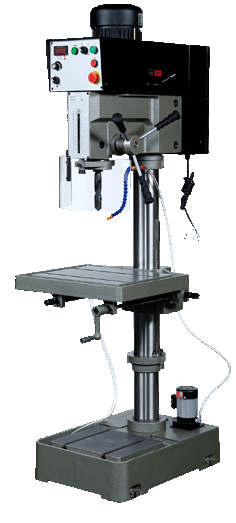

DP-920GH

Inverter Variable Speed Flow Drill Machine - Gear Driving

變頻無段變速流鑽 機-齒輪傳動

[MT#3 spindle 主軸/ Flow drill system 流鑽系統/ Tapping system 攻牙系統/

Digital tachometer 主軸轉速表]

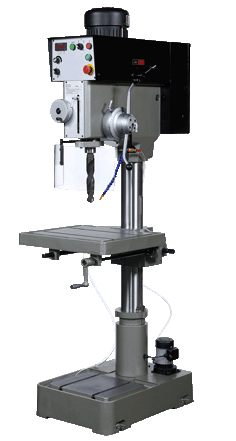

DP-925GAD

Auto Down Feed

Inverter Variable Speed Drilling Machine [Automatic Spindle Down Feed Mechanism] - Gear Driving

變頻無段變速自動進刀鑽床-齒輪傳動

[MT#4 spindle 主軸/ Tapping system 攻牙系統/ Digital tachometer 主軸轉速表/

Coolant equipment 冷卻系統 / Spindle auto down feed mechanism 主軸自動進刀裝置]

AUTOMATIC SPINDLE DOWN FEED MECHANISM



MD-930

"Cross Table"



Inverter Variable Speed Milling & Drilling Machine - Gear Driving

變頻無段變速鑽銑複合機-齒輪傳動

[MT#3 spindle 主軸/ Tapping system 攻牙系統/ Digital tachometer 主軸轉速表]



   ________________________________________________________________

TIMING BELT DRIVING MODELS 時規皮帶傳動機型



No vibration, smooth and quiet opration to assure the accuracy and duration.

主軸運轉安靜平順,不會產生振動,可有效延長機械壽命 及維持精度。

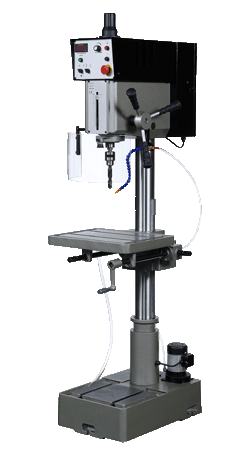

DP-915AH

Inverter Variable Speed Drilling Machine - Timing Belt Driving

變頻無段變速鑽床-時規皮帶傳動

[MT#3 spindle 主軸/ Tapping system 攻牙系統/ Digital tachometer 主軸轉速表]

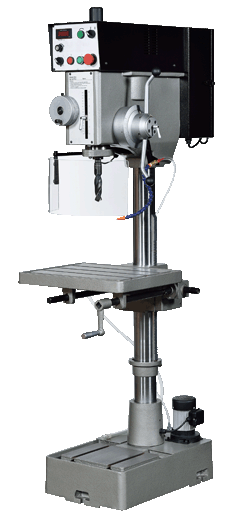

DP-920VAD

Auto Down Feed

Inverter Variable Speed Drilling Machine [Automatic Spindle Down Feed Mechanism] - Timing Belt Driving

變頻無段變速自動進刀鑽床-時規皮帶傳動

[MT#3 spindle 主軸/ Tapping system 攻牙系統/ Digital tachometer 主軸轉速表/

Coolant equipment 冷卻系統 / Spindle auto down feed mechanism 主軸自動進刀裝置]

AUTOMATIC SPINDLE DOWN FEED MECHANISM

MD-30BV

"Cross Table"

Inverter Variable Speed Milling & Drilling Machine - Timing Belt Driving

變頻無段變速鑽銑複合機-時規皮帶傳動

[MT#3 spindle 主軸/ Tapping system 攻牙系統/ Digital tachometer 主軸轉速表]



   ________________________________________________________________

DP-920B

Variable Speed Drilling Machine - Belt Driving

無段變速鑽床-齒型皮帶+時規皮帶傳動

[MT#3 spindle 主軸/ Digital Tachometer 主軸轉速表/ Forward and Reverse switch 正逆開關]



                                                                   OPTIONAL ACCESSORIES
