MAGNETIC MEASURING STAND

Germany, Taiwan, and China patents on the spare oil device design.
Steel-made feature makes our magnetic measuring stands more durable.
Our magnetic measuring stand can hold an Ø6mm, or an Ø8mm, or a lug back, or a dovetail indicator. Any sizes are all available upon request.
Triple-jointed-arm with a central hydraulic or mechanical clamp can easily rotate to any desired positions as you need.
M8 clamping shaft with a bigger clamping knob is easier to operate.
A powerful permanent magnetic base with an ON/OFF switch.
Fine adjustment horizontal arm makes zero-setting easier.

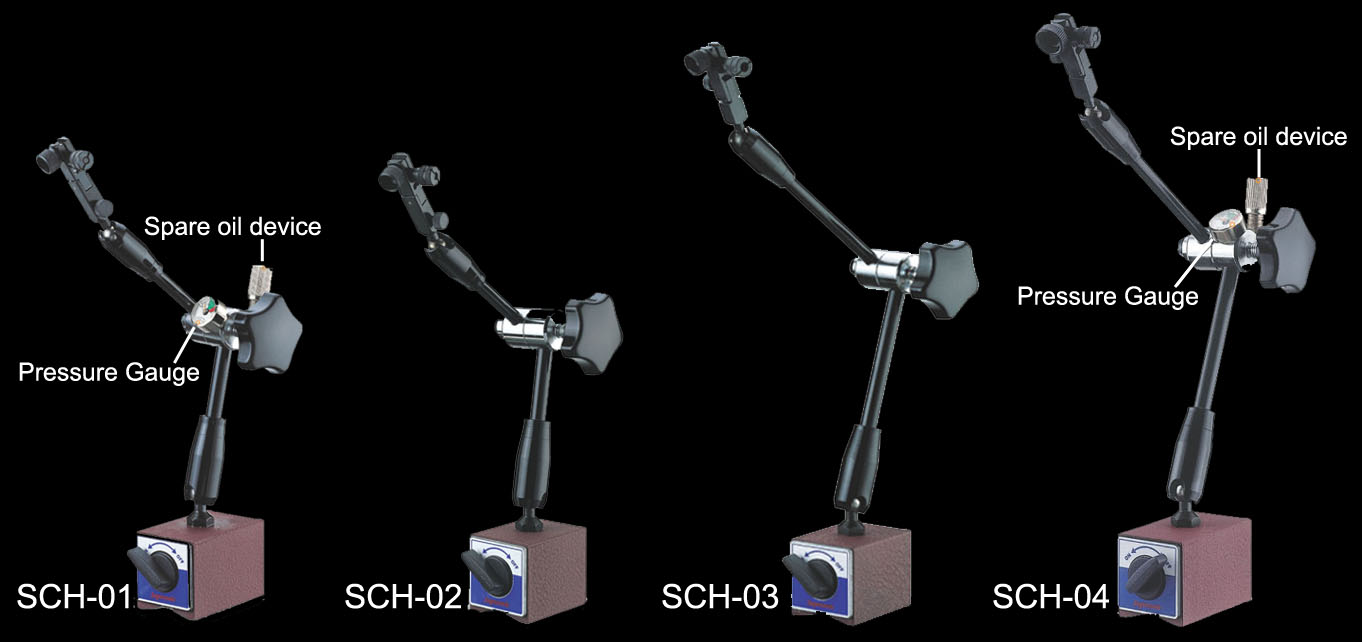

  Universal Hydraulic Magnetic Measuring Stand

Model Magnetic power Total height Arm length Thread Magnetic base Net weight
Unit (kgf) (mm) (mm) (mm) L x W x H (mm) (kg)
SCH-01
(Patent item)
100 385 335 M8 x 1.25 83 x 50 x 55 2.00
SCH-02 80 385 335 M8 x 1.25 70 x 50 x 55 1.90
SCH-03 80 480 430 M8 x 1.25 70 x 50 x 55 2.00
SCH-04
(Patent item)
100 480 430 M8 x 1.25 83 x 50 x 55 2.10

A-1 (Standard accessory)
Lug back dial indicator holder.

A-2 (Optional accessory)
Ø6mm dial indicator holder.



  Universal Mechanical Magnetic Measuring Stand


















Model Magnetic power Total height Arm length Thread Magnetic base Net weight
Unit (kgf) (mm) (mm) (mm) L x W x H (mm) (kg)

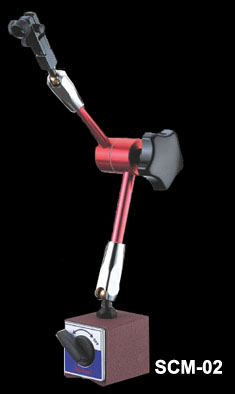

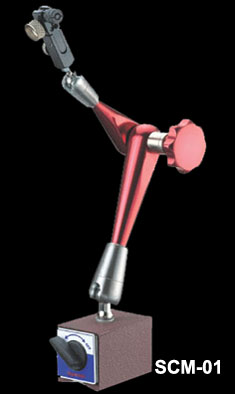

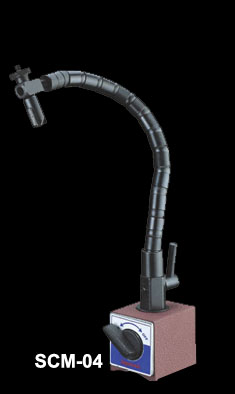

SCM-01 100 410 360 M8 x 1.25 83 x 50 x 55 2.20
SCM-02 60 390 340 M8 x 1.25 63 x 50 x 55 1.45
SCM-03 60 320 270 M8 x 1.25 63 x 50 x 55 1.35
SCM-04 60 390 340 M8 x 1.25 63 x 50 x 55 1.40
SCM-05 60 370 320 M8 x 1.25 63 x 50 x 55 1.40
SCM-06 40 220 190 M8 x 1.25 35 x 30 x 35 0.50
SCM-07 30 220 190 M8 x 1.25 30 x 30 x 30 0.40
SCM-08 30 205 177 M8 x 1.25 38Ø x 28 0.45
Standard Packing
Optional Packing
