SUPERSONIC – Magnetic Base

MAGNETIC BASE


    Magnetic Base is often used to hold a measuring device or other functional device. The magnetic base can be attached in a

     variety of positions to any attractive surface, allowing the base to be positioned on vertical faces, upside-down, or by round bar.

     An ON/OFF easy-operation switch maintains full magnetic holding power at the ON position and fully releases the magnetic

     power at the OFF position.

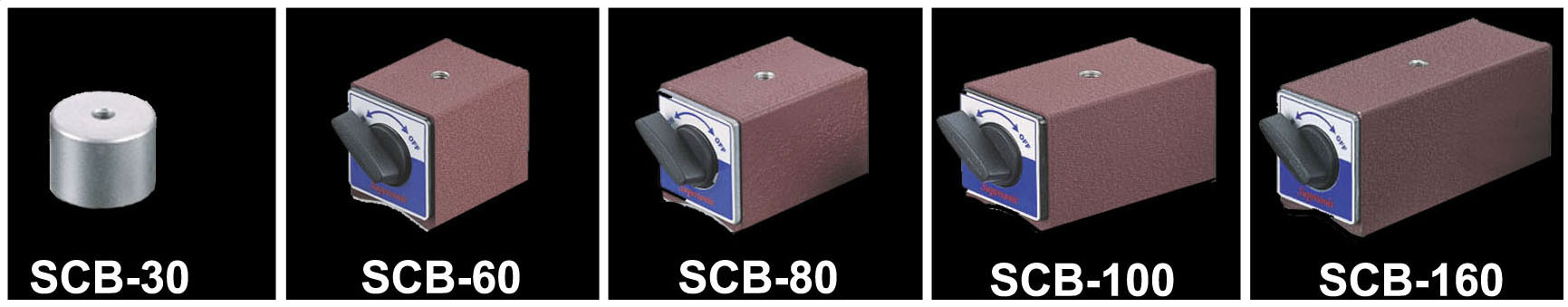

Model Magnetic power Thread Magnetic base dimension (mm) Net weight
Unit (kgf) (mm) L W H (kg)
SCB-160 160 M8 x 1.25 120 50 55 2.00
SCB-100 100 M8 x 1.25 83 50 55 1.40
SCB-80 80 M8 x 1.25 70 50 55 1.10
SCB-60 60 M8 x 1.25 83 50 55 1.00
SCB-40 40 M8 x 1.25 35 30 35 0.25
SCB-30 30 M8 x 1.25 Ø38 x 28 0.20

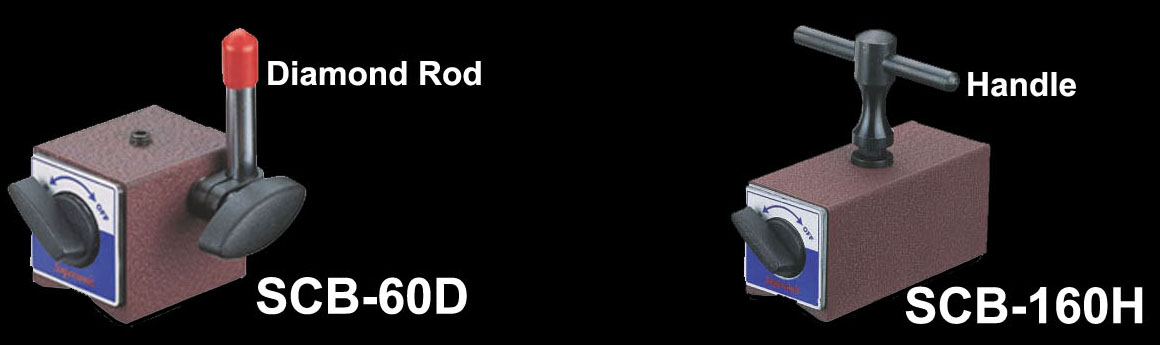

Handle and diamond rod are optional accessories.
